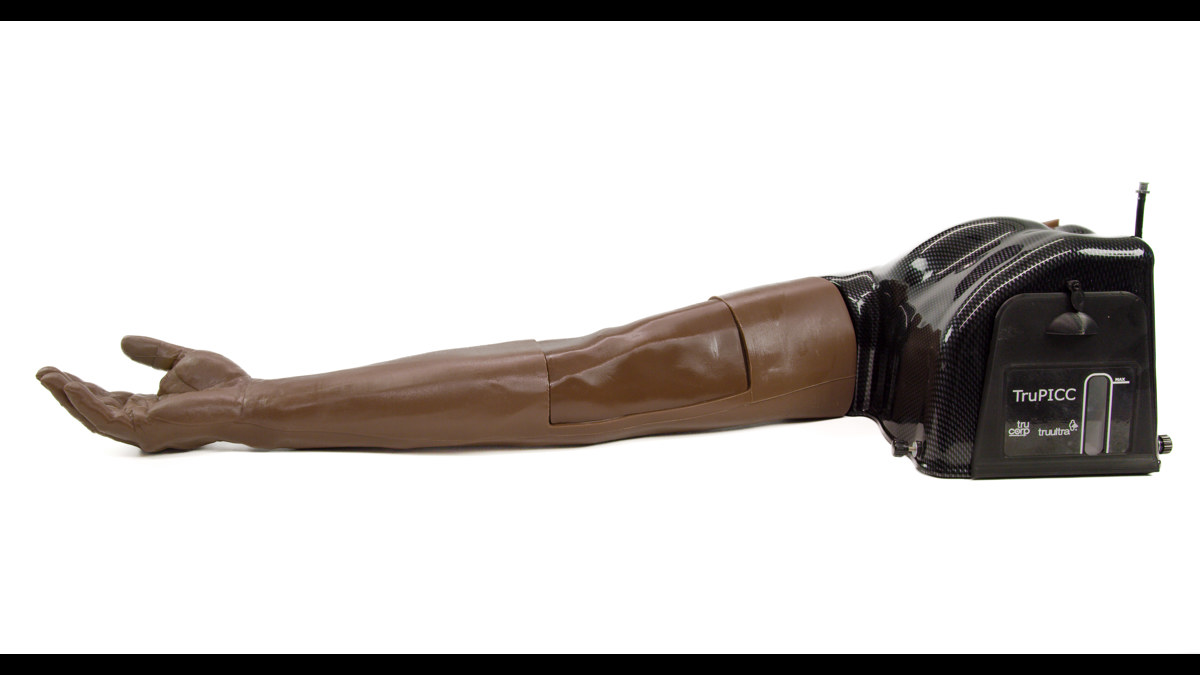

TruPICC IV Training Arm | Waldemar Larsson

Showcasing correct and realistic vascular anatomy, lifelike feel and responsiveness, the TruPICC IV training arm supports ultrasound guided PICC line and IV placement training to develop needle placement, guidewire and catheter insertion skills using the Seldinger technique.

IV Arm Training

Clear differentiation between the basilic vein and the brachial vein
Realistic visualisation of the median cubital, brachial and basilic veins under ultrasound
User feedback upon correct needle entry (vascular tenting and withdrawal of fluids

PICC Line Training

Full catheter PICC line placement
Supports practice of the Seldinger technique
Ultrasound verification of correct catheter placement is possible on the upper chest acoustic window
Model allows for fluid injection to verify needle tip location

Overview

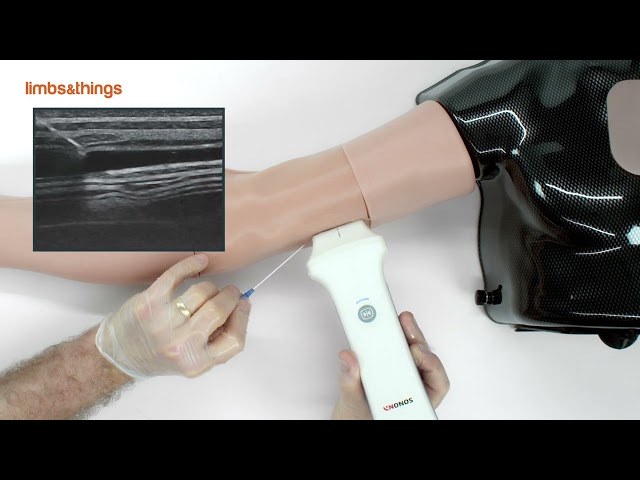

Realistic ultrasound guided PICC line insertion
Uses innovative self-healing TruUltra material
Ideal for training in peripherally inserted central catheters (PICC) and IV insertion
Quick and easy set-up
Easily transportable in supplied carrier
Acoustic window in chest of torso allows for Ultrasound verification of correct catheter placement

Realism

Realistic visualisation of the underlaying vascular anatomy
Vascular tenting upon entry into the vessel

Versatility

Uses self-healing material (TruUltra) to support over 800 needle incisions
Compatible with all ultrasound machines

Cleaning

Remove lubricant residue from the training arm
Mild detergents or enzymatic cleaning agents should be used only in-line with manufacturer’s instructions
Arm can be fully sanitised by wiping the silicone skin with a 75%+ alcohol spray
Ensure that all components are completely dry before reassembling and storing

Safety

Ensure training arm is placed on a flat surface
Procedures should only be performed on the ultrasound insert

Please do not use any of the following when cleaning the TruUltra product range:

Germicides, disinfectants, or chemical agents such as glutaraldehyde (e.g. Cidex®)
Ethylene oxide, phenol-based cleaners or iodine-containing cleaners

Anatomy

Adult male right arm
Upper right torso and shoulder

Vascular anatomy:

Brachial artery
Brachial vein
Cephalic vein
Basilic vein
Median cubital vein

Skills Gained

Ultrasound guided PICC Line Insertion

Full catheter PICC Line placement and Seldinger techniques that allow full procedure with inserting introducer and dilator
Realistic visualisation of the vascular anatomy of an arm including the brachial artery, and the brachial, cephalic, basilic and median cubital veins
Upper chest features the superior vena cava to verify correct catheter placement using ultrasound

Intravenous (IV) Cannulation tecniques

Realistic visualisation of the median cubital, brachial and basilic veins
Differentiation between the basilic vein and the brachial artery

Product Contains

Light
Dark

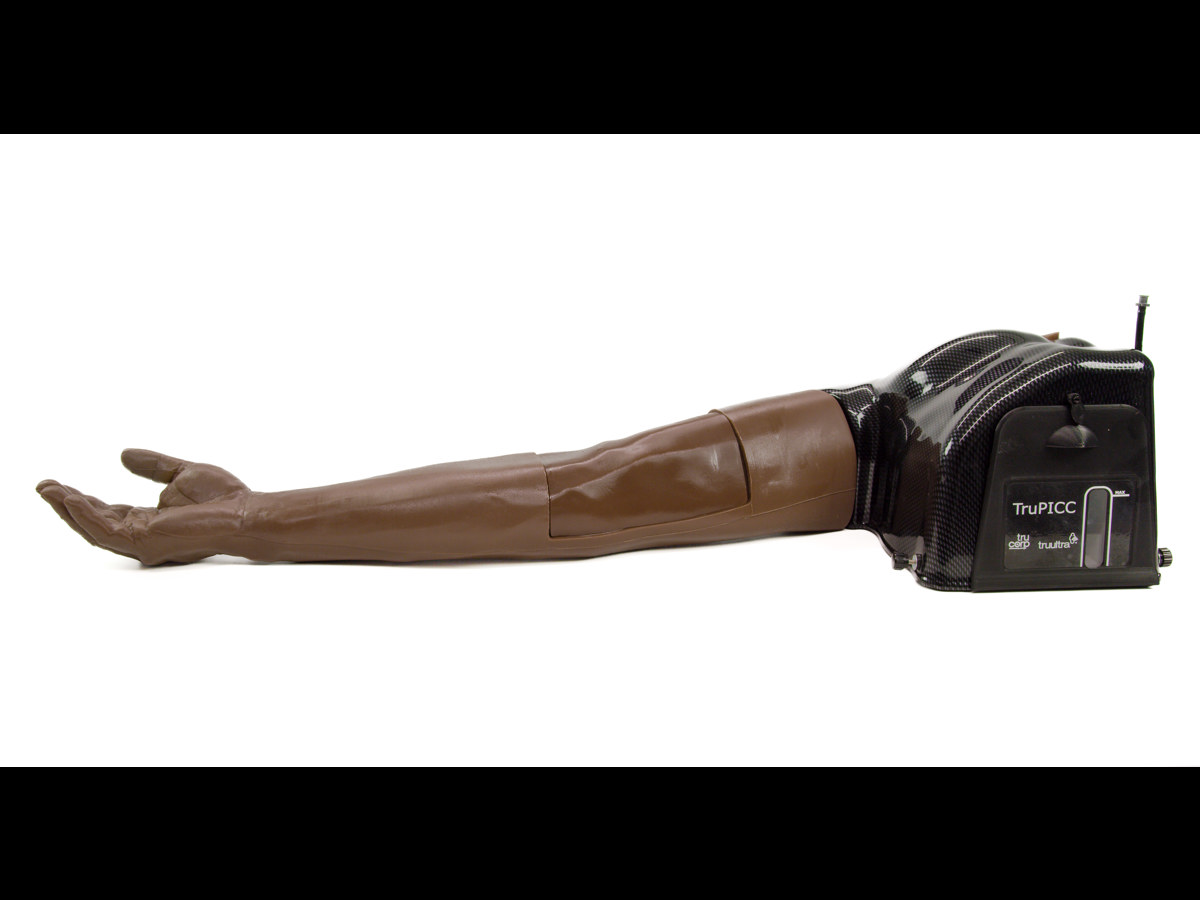

TruPICC (Dark Skin Tone)

Black Carrier Bag (PICC)

Also included:

250ml bottle of artificial blood concentrate (replacement 5 x 250ml pack is available)

1 luer lock syringe

Works with the following products:

Light
Dark

TruPICC Insert (Dark Skin Tone)

Black Carrier Bag (PICC)

User Guide

Trupicc User Manual Trucorp

PDF | 596,2 KB

What consumables are required for ongoing training with this ultrasound trainer?

You’ll receive 1 fitted TruPICC insert and 1 bottle of artificial blood concentrate (250ml) with your initial delivery.

Inserts are tested to last for over 800 needle incisions, individual replacements are available
Concentrated blood usage will depend on frequency and accuracy of procedures, replacement bottles of concentrated blood come in packs of 5

____________________________________

The ultrasound images are poor quality, how can I improve the visuals?

The most common cause of poor image quality is air inside the blood. Inserting an additional 10-20ml of blood into the cephalic and basilic veins will normally resolve this issue.

____________________________________

What equipment is recommended for use with the TruPICC IV Training Arm?

For optimal performance when using the TruPICC, TruCorp recommend the following:

Size 20G needle for IV cannulation
Size 4F PICC catheter with soft tip guidewire, single lumen, approximately 55-60cm long

Please note: Do not use a needle larger than 18G, due to the nature of the TruUltra material, larger gauge needles could cause permanent damage, and may void the product warranty.

____________________________________
