Bröstdrän- och nåldekompression har utformats för att uppfylla de specifika krav hos vårdpersonalens träning i kirurgisk eller guidewire-assisterad thoraxostomi och thoracentesis. Den här modellen tillåter en mängd olika tekniker för isättning av bröstdrän, inklusive ultraljudsguidade tekniker.
Overview
- Behållare kan fyllas med vätska eller konstgjort blod för att representera pleuralvätskeutgjutning
- Tvåsidiga dynor för bröstdrän- och nåldekompression
Realism
- Kan ge intryck av andning under ultraljud när den avancerade dynan används
- Luftbehållare för nåldekompression ger realistisk tömning av luft när nålen sätts in
Versatility
- Kan användas liggandes på rygg, sittandes eller i en framåtlutande position
- När standarddynan används kan torax förslutas
- Prisvärda, utbytbara dynor
Cleaning
- Drain fluids from trainer after use
- Rinse with clean water after use of simulated fluids
- Clean skin with a damp soft cloth, warm water and mild detergent
- Allow product to completely dry before storing, inside of water chambers can be dried with a soft damn cloth
Safety
- Latexfri
Anatomy
- Representerar en vuxen mans torax med uppsträckta armar
Beniga och mjukvävnadslandmärken:
- angulus sternalis, nyckelben, revben, stora bröstmuskeln och ytliga ryggmuskler
Inre ultraljudsanatomi:
- membranstrukturer och punkterad lunga
Skills Gained
- Nåldekompression av en spänningspneumotorax (vid både 2: a och 5: e interkostala mellanrummet)

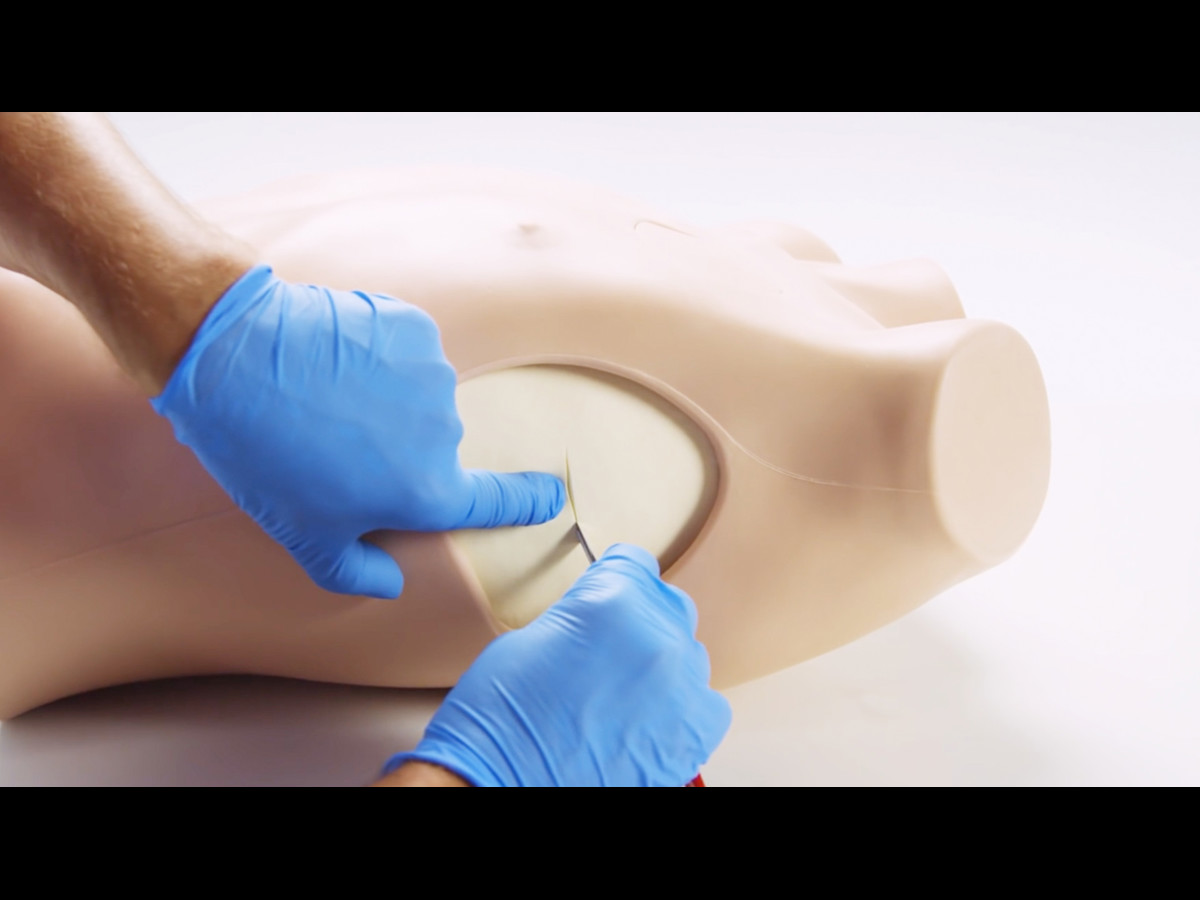

- Öppna eller nedskärning av bröstdränering: känna av rätt position, kirurgisk snitt, trubbig dissektion genom bröstväggen, perforering av pleura och fingersvep
- Suturera fast dränet

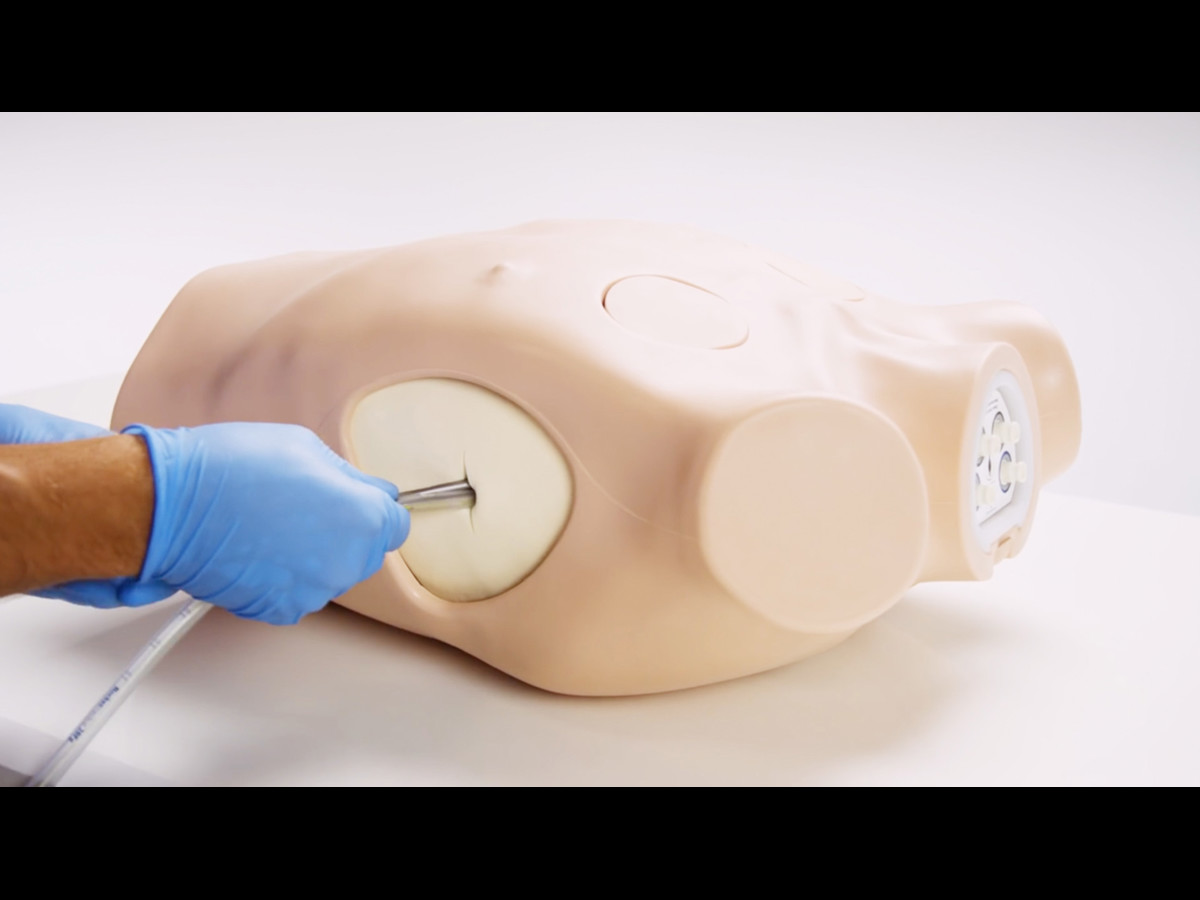

- Ultraljudstyrd bröstdräneringsinsättning (Seldinger-typ), inklusive införande av nål under direktsyn och ultraljudsigenkänning av bröstkonstruktioner
- Hantering av pleural effusion
Product Contains

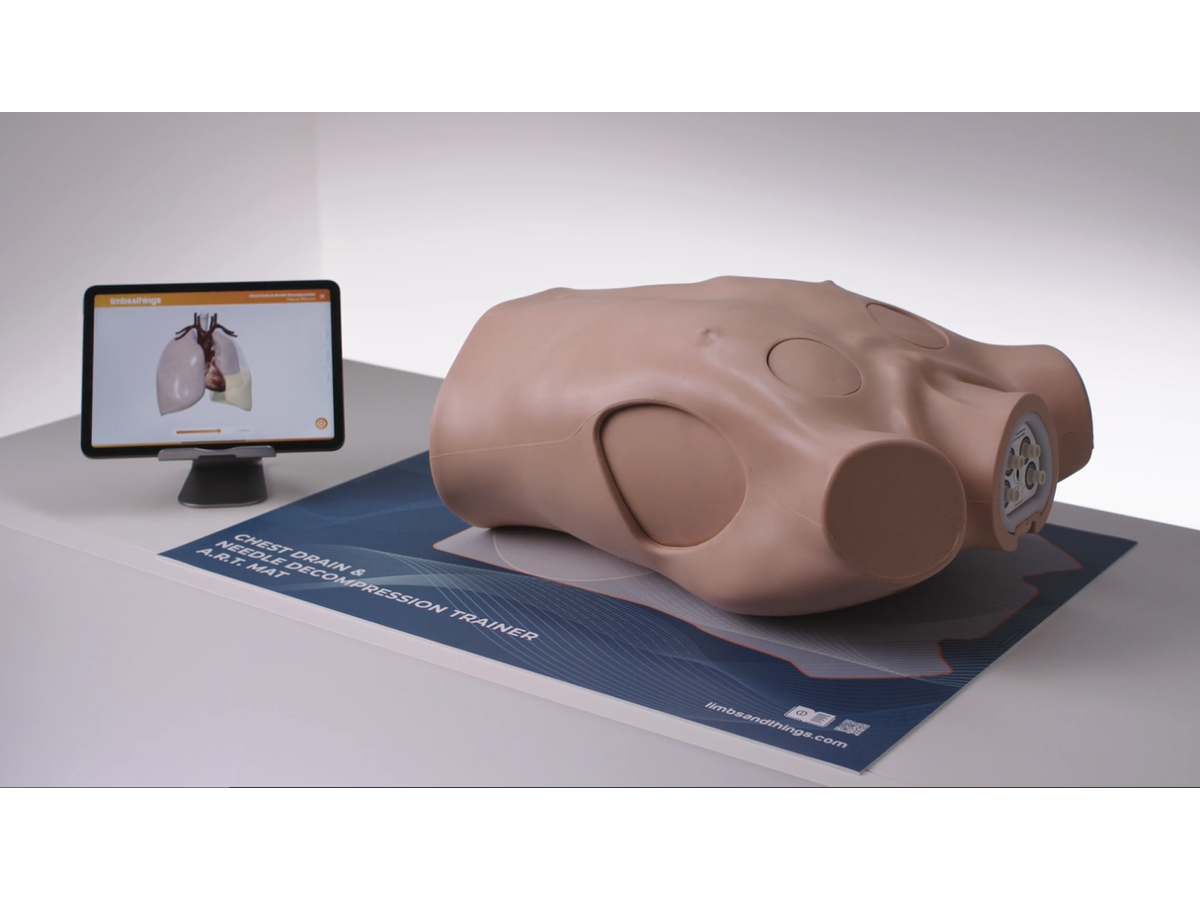

ART Mat for Chest
-
Light
-
Dark

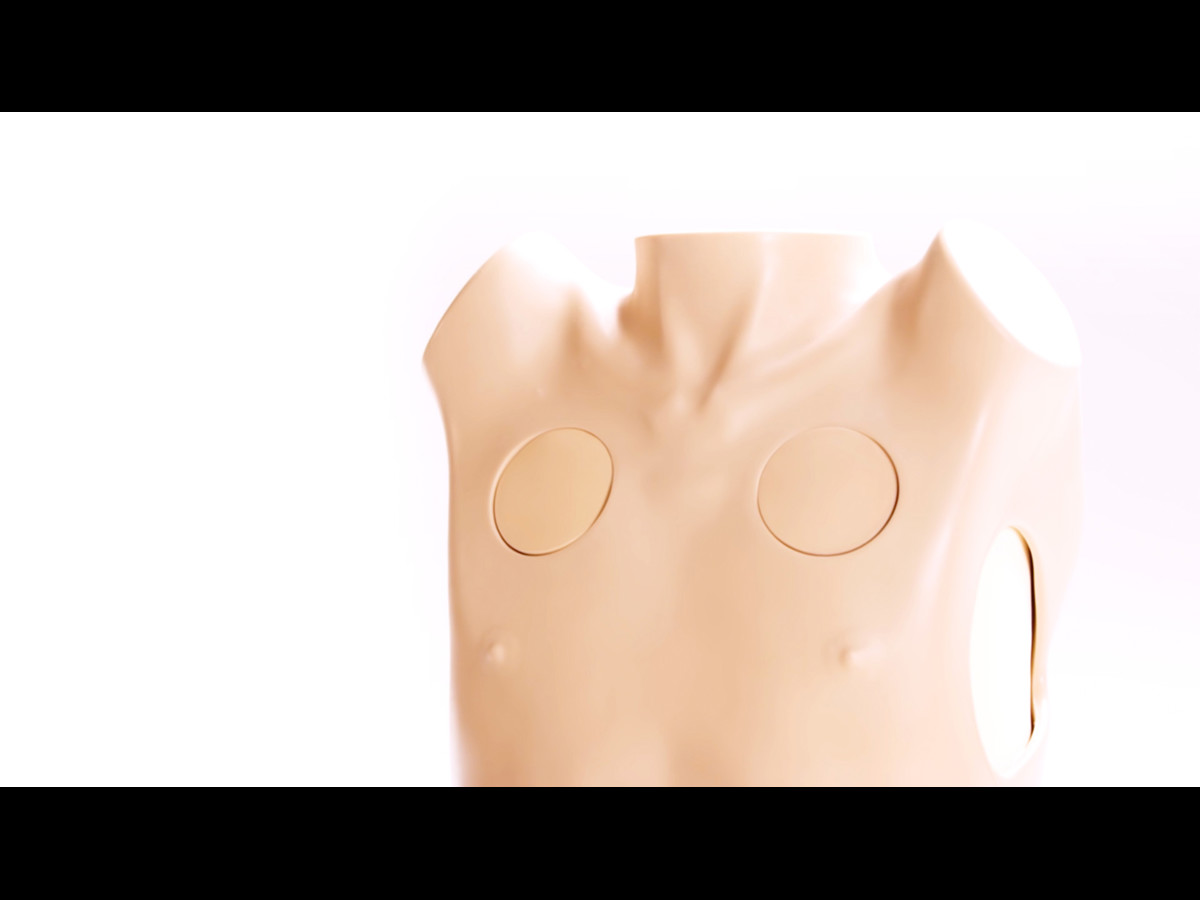

Nåldekompressionsdyna (x2)
-
Light
-
Dark

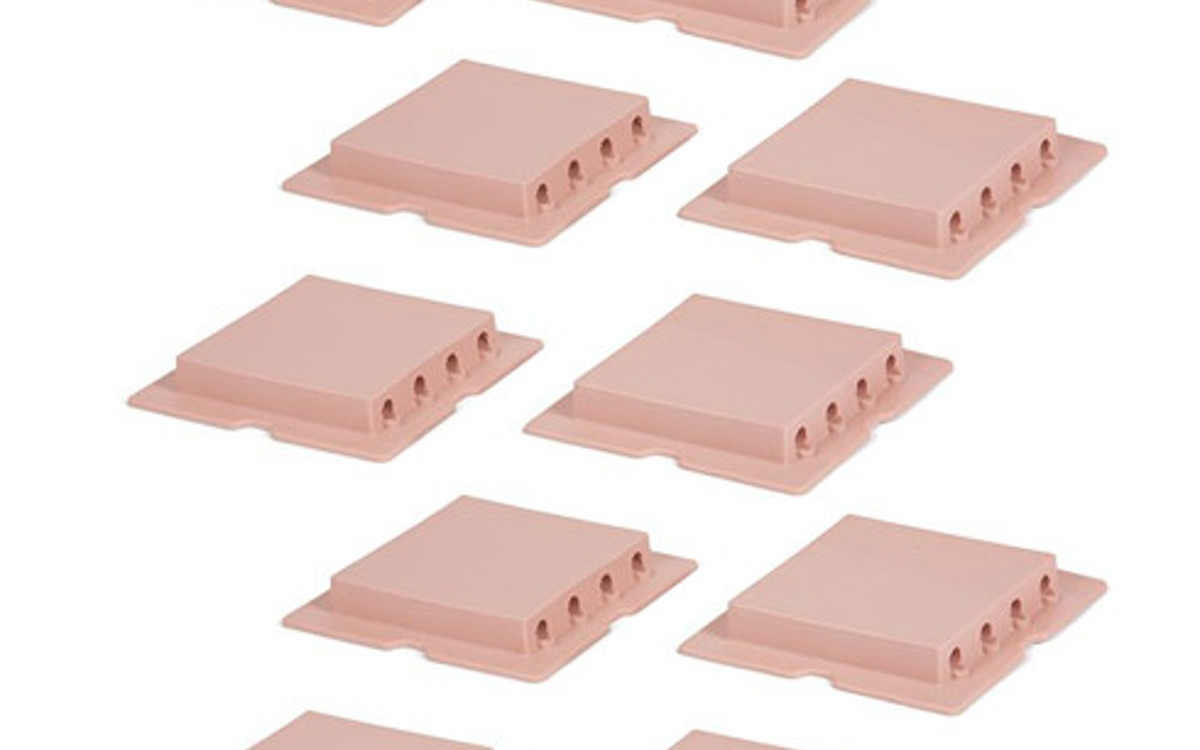

Bröstdrän avancerad dyna (x2)
-
Light
-
Dark

Bröstdrän standarddyna (x2)

Revbensram (vänster)

Revbensram (höger)

Bröstdrän Revben (x12)

Bröstdrän lunga

Bröstdrän diafragma
-
Light
-
Dark

Chest Drain Skin (Light Skin Tone)

Chest Drain Pump: Needle Decompression

Chest Drain Pump: Respiratory Swing
Also contains, 12 piece Slotted Retaining Knobs set with tightening key.
References
National Association of State EMS Officials: National Model EMS Clinical Guidelines (2016, page 185): Trauma: If absent or diminished breath sounds in a hypotensive patient, consider tension pneumothorax, perform needle decompression
AAMC Recommendations For Clinical Skills Curricula For Undergraduate Medical Education (2005) (2005, p. 27): Chest tube insertion
Advanced Practice Nursing Procedures (2015, Section six, pages 488 - 491) Margaret R. Colyar : Respiratory procedures: Chest Tubes for Emergency Transport
RACS Essential Surgical Skills (page 17, Jan 2015): Chest Trauma perform insertion of Chest Tubes and Chest Drains
NHS National Practitioner Program: Matrix Specification for the Physician Associate (2016). p.68: Breathlessness: Perform chest aspiration and chest drain insertion
Specialty Training Curriculum for Core Medical Training, 2013 (p.56): Perform chest aspiration and chest drain insertion
GMC General Surgery Curriculum 2018 (p.67): Technical Skills and Procedures - Chest drain insertion Trauma & Orthopaedics Curriculum 2015 (updated 2018) (p.205): Technical Skills and Procedures, Module 6, Simulation - Chest Drain insertion Cardiothoracic Surgery Curriculum 2014 Module 6, Simulation Techniques - Chest Drain insertion (p. 43)
College of Paramedics, Paramedic Post Graduate Curriculum Guidance (2017, page) Section 3: Advanced Paramedic ...urgent & emergency care, and includes the development and attainment of the following skills, competencies and clinical expertise; ....Chest Drain
ICM Curriculum: Supporting Excellence for a CCT in Intensive Care Medicine, The Faculty of Intensive Care Medicine, 2021.
Trauma & Orthopaedic Surgery Curriculum, Intercollegiate Surgical Curriculum Programme, 2021
Can medical students practice ultrasound techniques during training with the chest drain trainer?
Yes. The Advanced Chest Drain Pads are made of an echolucent material that helps support a wide range of ultrasound simulations. These pads are ideal for practicing the Seldinger technique of placing a tube in the pleural cavity via a guidewire.
Why does the chest tube trainer come with two different types of chest drain pads?
To ensure ongoing cost efficiency for courses, Limbs & Things create the Standard & Advanced Pads to support different training requirements:
- Standard Pads – these foam pads are designed for skin incision and suturing as part of a blunt dissection, and include a pleural layer on the back that has realistic give, and a “pop” on puncture. They also support the use of adhesive bandages
- Advanced Pads – these silicone pads are designed for ultrasound practice. The echolucent material is partially self-healing, allowing for a greater number of guidewire insertions. The pads also support blunt dissection, however, incisions from this procedure will not self-seal
Replacements are available in packs of 2 or 10 (frequency of replacement depends on procedures and efficiency).
Can we use existing supplies with the chest tube simulator and needle decompression simulator, or does it require specific equipment?
This trainer supports a full range of equipment, though there are some recommended items that the trainers have been tested on:
- Advanced Chest Drain Pads – optimal catheter, 12 FG
- Needle Decompression Pads – optimal needle, 21g
Other sized catheters or needles can be used, but the above recommendations will help prolong the life of the chest pads.
Troubleshooting
Our chest drain simulator is leaking fluids
Water leakage is the most common query related to the chest trainer, and usually solved with one of the following:
- Wrong pad – water leaking from around the edge or through the pad - the chest model is supplied with two different types of pad for chest drain procedures, the Standard foam pad, and the Advanced silicone pad. Only the Advanced pad is designed for use with fluids
- Pad end of life – water leaking through previous needle sticks or incisions – Advanced pads support multiple procedures, after prolonged use, the self-healing material will become less effective and will require replacement
- Not fitted properly – the Advanced pad needs to have a good seal to keep the internal water chamber contained. Below are some tips on ensuring there’s a strong seal
Tips:
- Ensure ribs are fitted into the pads to ensure rigidity
- Check you are using the correct rib frame, and it is oriented the correct way (Rib Frames are marked with Left or Right, and an arrow to indicate the top)
- Fit the pad into the frame, the silicone edges should be flush with the inside of the frame
- Place the frame onto the correct side of the chest, the screws should be centred along the notches along its edge
- Place a slotted retaining knob on each screw and hand tighten them (Helpful hint: tighten each knob halfway, then hand tighten them again, so the frame is flush against the torso)
- Using the key supplied, tighten each knob to create a tight seal
Uncommon leakage issues:
- Tubing is not connected securely
- Clips on tubing are not closed correctly
- Cracked casing on the torso’s fluid chambers
If you are still experiencing issues, contact our customer service team for assistance.
You can also check out our Hints & Things video on setting up your Chest Drain & Needle Decompression Trainer.
